Circle CI

To connect Circle CI to Testomat.io, lets start with configuring your Circle CI:

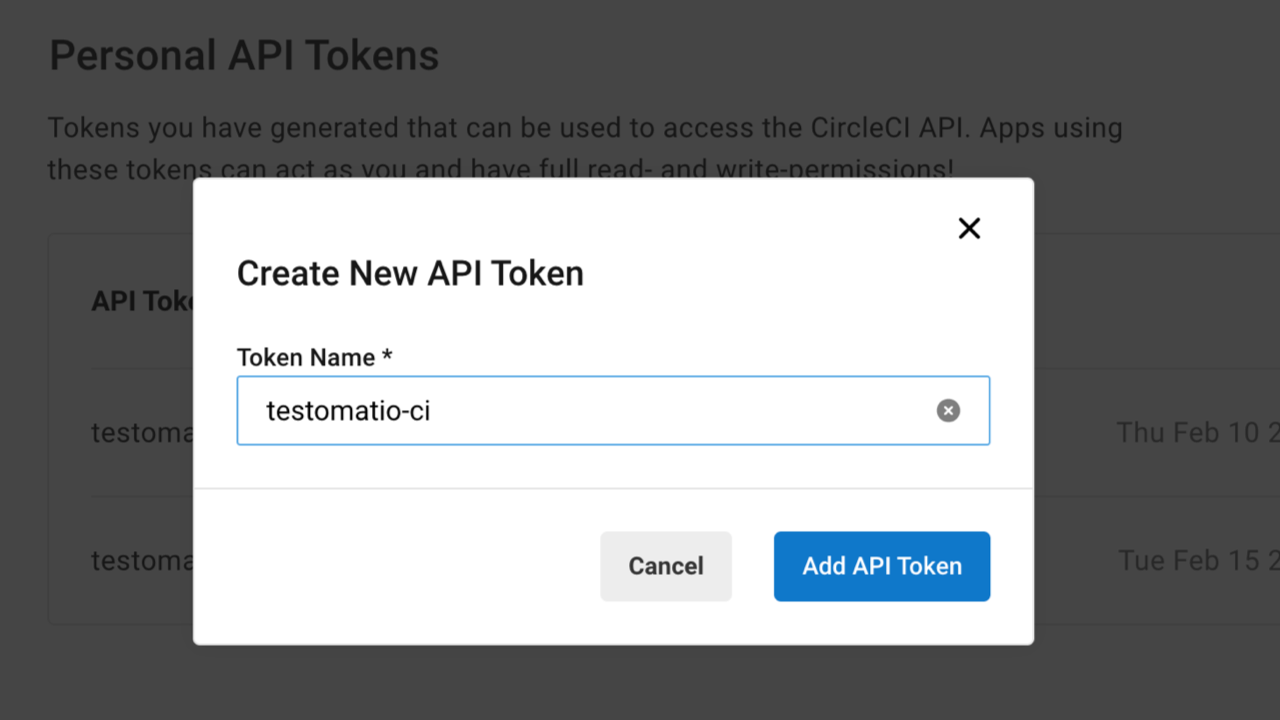

1. Create an access token on Circle CI by following the instuctions by link.

2. Create a workflow in config.yml file in .circle folder in the root folder in your repository.

3. This workflow will be used solely by Testomat.io so it should start only on workflow_dispatch event. The event should be defined with the following input parameters:

parameters:
  testomatio:
    type: string
    default: ""

  run:
    type: string
    default: ""

  testomatio_url:
    type: string
    default: ""

  grep:
    type: string
    default: ""

4. The Job should include a step where the test runner is executed with --grep option and TESTOMATIO environment variables passed in. For instance:

     - run:
         name: Run tests
         command: npx codeceptjs run --grep "<< pipeline.parameters.grep >>"
         environment:
           TESTOMATIO: << pipeline.parameters.testomatio >>
           TESTOMATIO_RUN: << pipeline.parameters.run >>
           TESTOMATIO_URL: << pipeline.parameters.testomatio_url >>

Note

If you use on-premise Testomat.io setup you will also need to add testomatio_url parameter.

After Circle CI is set up, its time to open your project in Testomat.io and configure the connection between these two systems.

1. Go to ‘Settings’.
2. Select ‘Continuous Integration’.
3. Click ‘Connect to CI’.

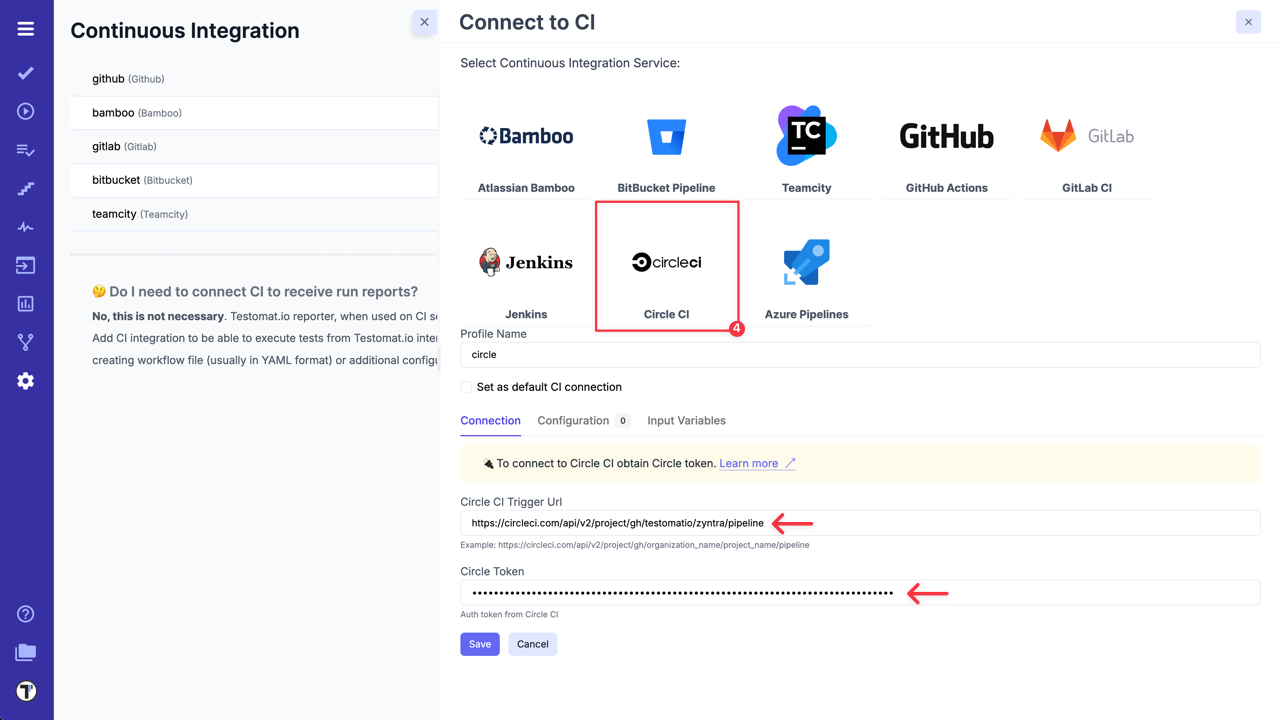

4. Select ‘Circle CI’ and enter following details on the ‘Connection’ tab:

• Circle CI Trigger Url - (see how it works here).
• Circle Token - Auth token from Circle CI, created in Circle CI during Step 1.

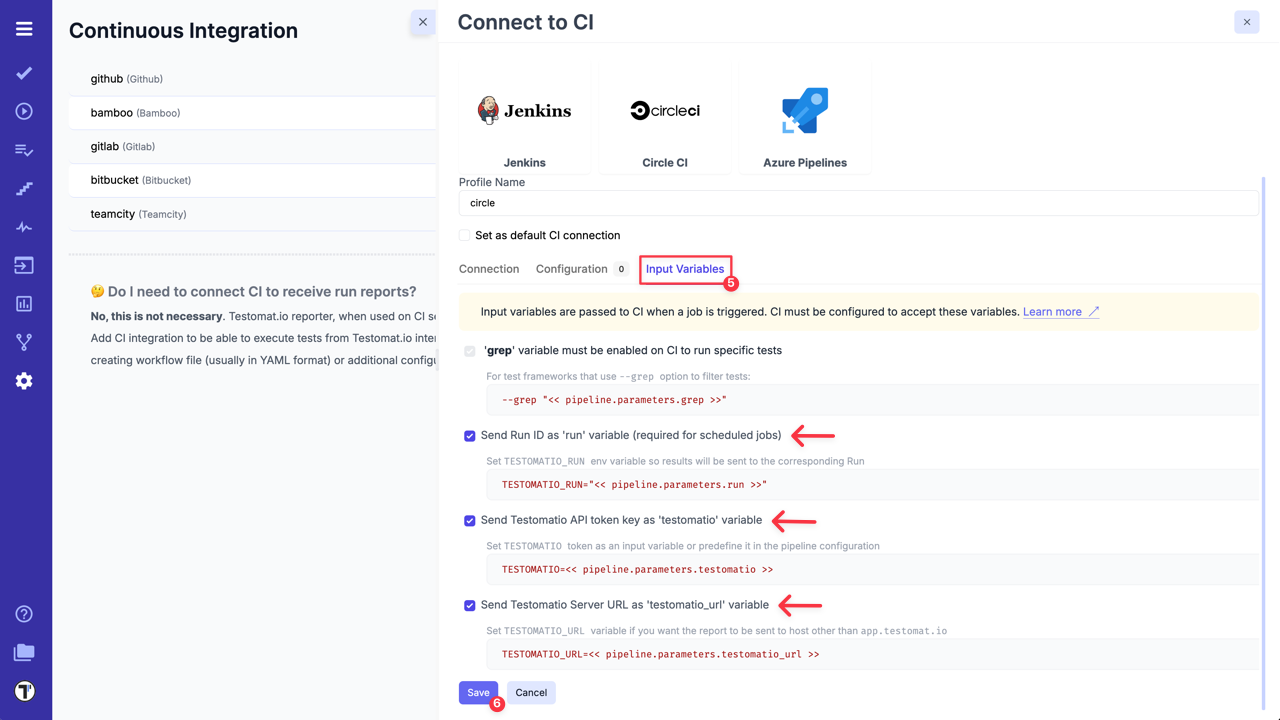

5. Switch to ‘Input Variables’ tab and select checkboxes:

• Send Run ID as run input (required for scheduled jobs).
• Send Testomat.io API key as testomatio input.
• Send Testomat.io Server URL as testomatio_url input (if you use on-premise setup).

Note

You can set and pass more input variables if you set them in Environment Configuration. For example: test environment, browser, branch, etc.

6. Click on ‘Save’ button to save the connection.

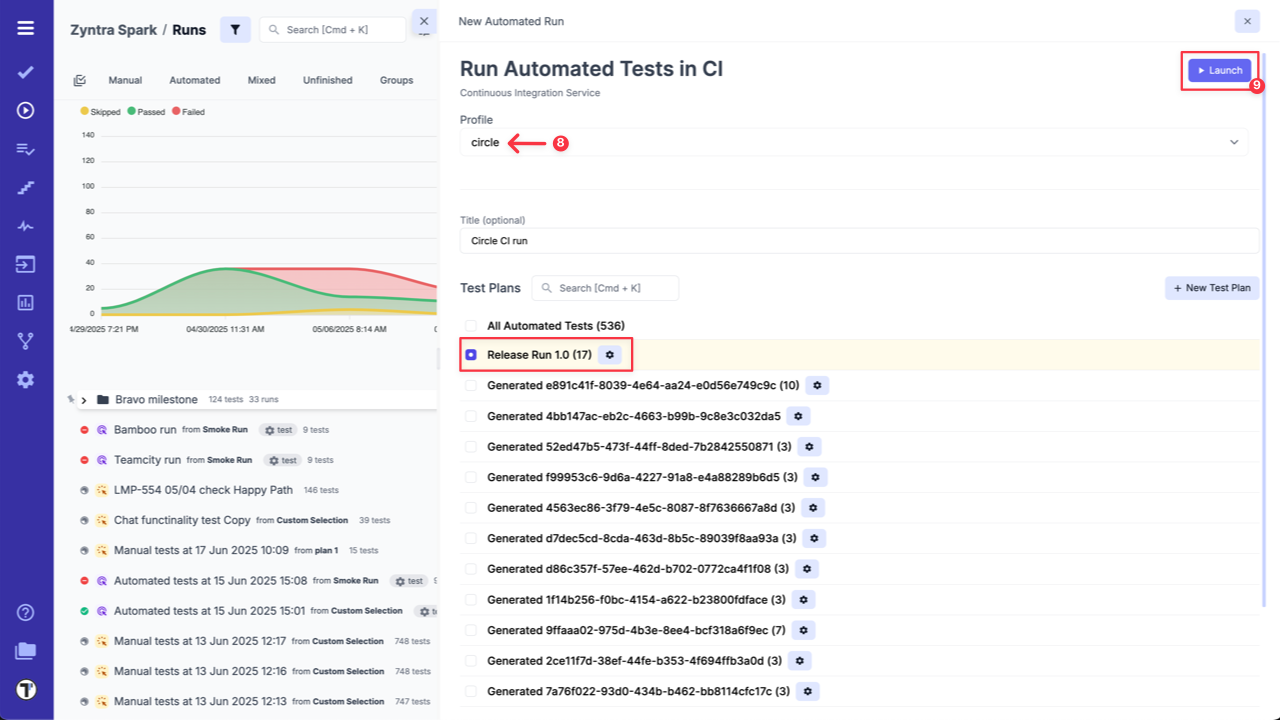

7a. When the connection is saved, open ‘Runs’ page and select Run Automated Tests in CI option in extra menu.

8a. Select ‘Circle CI’ profile in a list, select a target ref or any other variables, if any were configured. Optionally, select a Test Plan or create a new one.

9a. Click on ‘Launch’ button and wait for the results.

OR

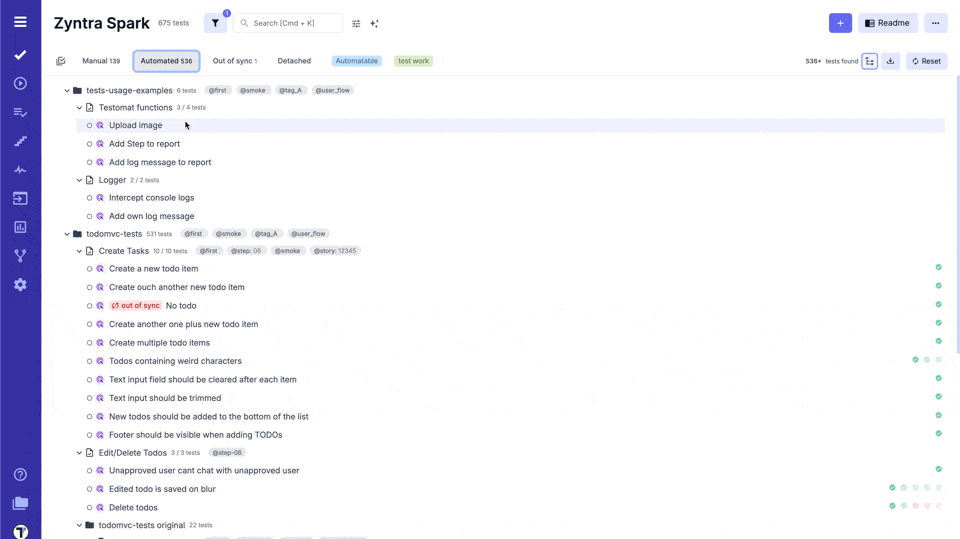

7b. On ‘Tests’ page select any automated suite or test case -> click ‘Extra menu’ button -> select ‘Run Tests’ option -> open ‘Run in CI’ tab.

8b. Select ‘Circle CI’ profile in a list, as well, select a target ref or any other variables, if any were configured.

9b. Click on ‘Launch’ button and wait for the results.

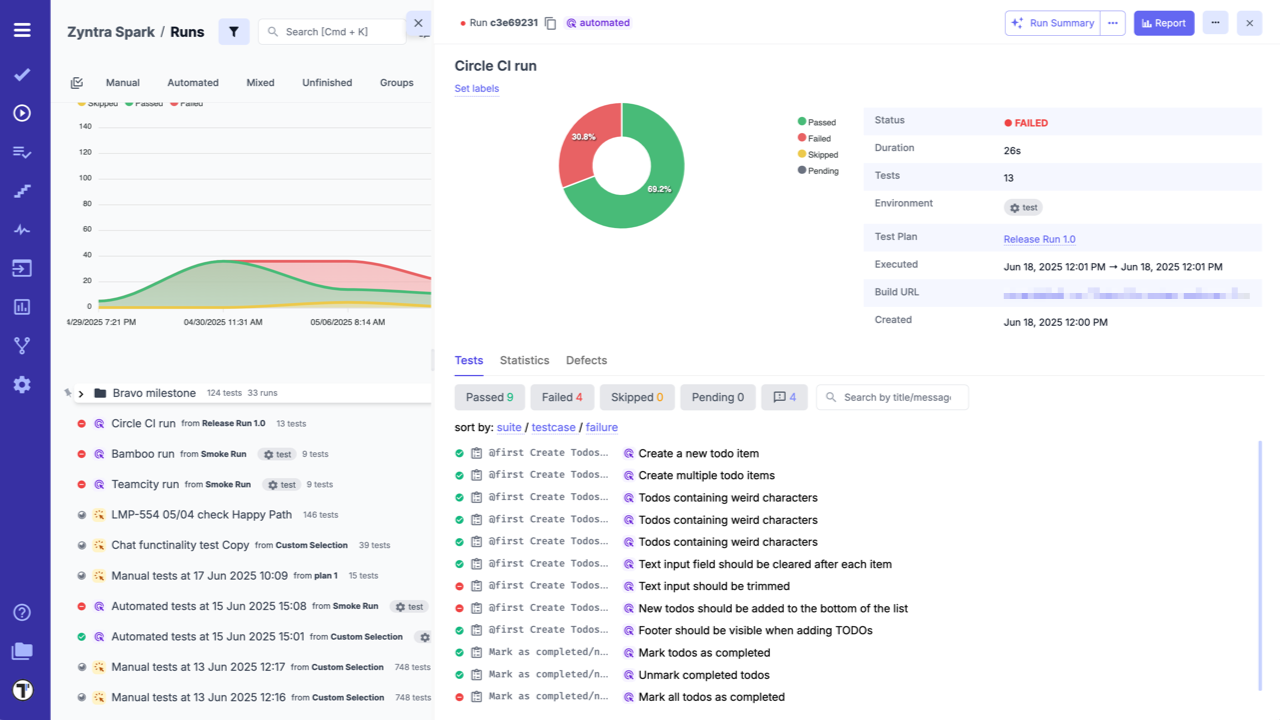

This will start a new job in Circle CI, please check that the job was successfully triggered and completed. After the job has finished, a run report will be available on Runs page of Testomat.io.
